產品概述
MX6012-IS雙頻無線接入點，是一款支持IEEE 802.11a/b/g/n/ac/ax協議的雙頻無線AP，最高速率1773.5Mbps，優化使用頻寬和上網速度；能夠支持AP/Client多種工作模式，滿足不同的應用需求。靈活適用于不同的網絡接入方案，支持無線定位功能，滿足智慧無線覆蓋需求；支持kvr無縫漫游技術，自動偵測并無縫切換，用戶可在網絡信號覆蓋范圍內，無感知漫游。本產品能夠為客戶提供穩定無線信號覆蓋，確?？蛻粝硎芊€定、高質量、便捷的無線網絡服務。
MX6012-IS提供3個千兆電口、2個千兆SFP、2.4G/5.8G雙頻合路天線接口，支持接入多種類型天線，滿足不同場景覆蓋。產品硬件設計滿足本安要求，高可靠的電源多級保護及端口保護設計，可以保證MX6012-IS無線產品長期工作在惡劣的工控環境下。
產品特征
- 產品采用IPQ6000+QCA8075+QCN5052+QCN5022方案構架
- 2.4GHz速率573.5Mbps，5.8GHz速率1200Mbps
- 支持接入點，客戶端，WDS接入點，WDS客戶端模式
- 支持2×2MIMO，雙頻合路MMCX接口
- 支持動態頻率選擇（DFS）
- 支持Uart/485/UWB模塊/物聯網模塊
- 支持無線探針，配合定位引擎可實現人員定位功能
- 支持1024QAM調制，數據傳輸效率相比802.11ac提升25%
- DDR3 4Gb，Nor Flash 128Mb，1Gb的NAND閃存
- 支持3x千兆電口，2x千兆光口
- 專業的本安電源設計，具有欠壓保護、輸出短路、過流、過壓保護，輸入防反接功能
- WIFI單機功耗≤13W，擴展5G互聯網功耗≤15W；
- DC或3位5.08mm間距接線端子供電，寬壓9~30V
- 滿足本質安全特性
- 支持AC 統一管理（硬件單獨購買）
產品規格
| 主芯片 | IPQ6010+QCA8075+QCN5052+QCN5022 |
| 外置FEM | QPF4588A+QPF4288A |
| 內存 | 1GB DDR3+ 16MB Nor Flash+ 128MB Nand Flash |
| 頻率范圍 | 2.4G：2412MHz~2472MHz；5.8G：5180MHz~5320MHz、5745MHz～5825MHz |
| 無線速率 | 1773.5Mbps |
| 數據調制方式 | 11n：64-QAM MCS7 |
| 11ac：256-QAM MCS9 | |
| 11ax：1024-QAM MCS11 | |
| 發射功率 | 2.4G（11ax）： HT40：24dBm@ MCS0 |
| 5.8G（11ax）：HT80：24dBm@ MCS0 | |
| 接收靈敏度 | 11ax： |
| HE20 MCS0 <-95dBm / MCS11 <-62dBm | |
| HE40 MCS0 <-89dBm / MCS11 <-60dBm | |
| HE80 MCS0 <-86dBm / MCS11 <-56dBm | |
| 網口 | 3x1Gbps 電口+2x1Gbps SFP |
| 供電電壓 | 9V~36V（5.5mm*2.1/5.08 間距 2pin） |
| 整機功耗 | WiFi功耗≤15W，擴展5G互聯網功耗≤18W |
| 天線接口 | 2xMMCX |
| UART | Uart 接口（2.54mm 間距 4pin |
| RS-485 | RS-485 接口（3.8mm 間距 3pin） |
| LTE接口 | 4G/5G LTE Slot Mini-Pcie（USB3.0 總線） |
| SIM卡槽 | Micro SIM |
| 指示燈 | 狀態指示燈 |
| 按鍵 | Reset鍵 |
| 尺寸 | 160（長） x 136（寬）x 21.5（高）mm, 偏差±0.5mm |
| 顏色 | 啞光黑 |
| 工作/存儲溫度 | 溫度：-20℃～+70℃（工作），-40℃ ～+90℃（儲存） |
| 工作/存儲溫度 | 濕度（非凝結）：10％～95％（工作），5％～90％（儲存） |
| 認證標準 | RoHS/REACH |
射頻參數
| 頻率 | 速率 | 發射功率（單通道） | 發射功率（雙通道） | 公差 | 接收靈敏度 | 公差 |
| 2.4GHz 802.11b | 1Mbps | 21dBm | 24dBm | ±2dB | -96dBm | ±2dB |
| 2Mbps | 21dBm | 24dBm | ±2dB | -96dBm | ±2dB | |
| 5.5Mbps | 21dBm | 24dBm | ±2dB | -95dBm | ±2dB | |
| 11Mbps | 21dBm | 24dBm | ±2dB | -94dBm | ±2dB | |
| 2.4GHz 802.11g | 6Mbps | 21dBm | 24dBm | ±2dB | -95dBm | ±2dB |
| 9Mbps | 21dBm | 24dBm | ±2dB | -94dBm | ±2dB | |
| 12Mbps | 21dBm | 24dBm | ±2dB | -92dBm | ±2dB | |
| 18Mbps | 21dBm | 24dBm | ±2dB | -90dBm | ±2dB | |
| 24Mbps | 21dBm | 24dBm | ±2dB | -87dBm | ±2dB | |
| 36Mbps | 21dBm | 24dBm | ±2dB | -85dBm | ±2dB | |
| 48Mbps | 21dBm | 24dBm | ±2dB | -83dBm | ±2dB | |
| 54Mbps | 21dBm | 24dBm | ±2dB | -81dBm | ±2dB | |
| 2.4GHz 802.11n HT20 | MCS0 | 21dBm | 24dBm | ±2dB | -95dBm | ±2dB |
| MCS1 | 21dBm | 24dBm | ±2dB | -94dBm | ±2dB | |
| MCS2 | 21dBm | 24dBm | ±2dB | -92dBm | ±2dB | |
| MCS3 | 21dBm | 24dBm | ±2dB | -90dBm | ±2dB | |
| MCS4 | 21dBm | 24dBm | ±2dB | -88dBm | ±2dB | |
| MCS5 | 21dBm | 24dBm | ±2dB | -86dBm | ±2dB | |
| MCS6 | 21dBm | 24dBm | ±2dB | -83dBm | ±2dB | |
| MCS7 | 20dBm | 23dBm | ±2dB | -80dBm | ±2dB | |
| 2.4GHz 802.11n HT40 | MCS0 | 21dBm | 24dBm | ±2dB | -94dBm | ±2dB |
| MCS1 | 21dBm | 24dBm | ±2dB | -92dBm | ±2dB | |
| MCS2 | 21dBm | 24dBm | ±2dB | -90dBm | ±2dB | |
| MCS3 | 21dBm | 24dBm | ±2dB | -88dBm | ±2dB | |
| MCS4 | 21dBm | 24dBm | ±2dB | -86dBm | ±2dB | |
| MCS5 | 21dBm | 24dBm | ±2dB | -83dBm | ±2dB | |
| MCS6 | 21dBm | 24dBm | ±2dB | -80dBm | ±2dB | |
| MCS7 | 20dBm | 23dBm | ±2dB | -77dBm | ±2dB | |
| 2.4GHz 802.11ax HE20 | MCS0 | 21dBm | 24dBm | ±2dB | -96dBm | ±2dB |
| MCS1 | 21dBm | 24dBm | ±2dB | -95dBm | ±2dB | |
| MCS2 | 21dBm | 24dBm | ±2dB | -92dBm | ±2dB | |
| MCS3 | 21dBm | 24dBm | ±2dB | -90dBm | ±2dB | |
| MCS4 | 21dBm | 24dBm | ±2dB | -87dBm | ±2dB | |
| MCS5 | 21dBm | 24dBm | ±2dB | -84dBm | ±2dB | |
| MCS6 | 21dBm | 24dBm | ±2dB | -81dBm | ±2dB | |
| MCS7 | 20dBm | 23dBm | ±2dB | -78dBm | ±2dB | |
| MCS8 | 19dBm | 21dBm | ±2dB | -75dBm | ±2dB | |
| MCS9 | 19dBm | 21dBm | ±2dB | -72dBm | ±2dB | |
| MCS10 | 17dBm | 20dBm | ±2dB | -69dBm | ±2dB | |
| MCS11 | 16dBm | 19dBm | ±2dB | -66dBm | ±2dB | |
| 2.4GHz 802.11ax HE40 | MCS0 | 21dBm | 24dBm | ±2dB | -94dBm | ±2dB |
| MCS1 | 21dBm | 24dBm | ±2dB | -93dBm | ±2dB | |
| MCS2 | 21dBm | 24dBm | ±2dB | -90dBm | ±2dB | |
| MCS3 | 21dBm | 24dBm | ±2dB | -87dBm | ±2dB | |
| MCS4 | 21dBm | 24dBm | ±2dB | -84dBm | ±2dB | |
| MCS5 | 21dBm | 24dBm | ±2dB | -81dBm | ±2dB | |
| MCS6 | 21dBm | 24dBm | ±2dB | -78dBm | ±2dB | |
| MCS7 | 20dBm | 23dBm | ±2dB | -75dBm | ±2dB | |
| MCS8 | 19dBm | 21dBm | ±2dB | -72dBm | ±2dB | |
| MCS9 | 19dBm | 21dBm | ±2dB | -69dBm | ±2dB | |
| MCS10 | 17dBm | 20dBm | ±2dB | -66dBm | ±2dB | |
| MCS11 | 16dBm | 19dBm | ±2dB | -64dBm | ±2dB | |
| 5.8GHz 802.11ax HET20 | MCS0 | 21dBm | 24dBm | ±2dB | -95dBm | ±2dB |
| MCS1 | 21dBm | 24dBm | ±2dB | -93dBm | ±2dB | |
| MCS2 | 21dBm | 24dBm | ±2dB | -90dBm | ±2dB | |
| MCS3 | 21dBm | 24dBm | ±2dB | -87dBm | ±2dB | |
| MCS4 | 21dBm | 24dBm | ±2dB | -83dBm | ±2dB | |
| MCS5 | 21dBm | 24dBm | ±2dB | -80dBm | ±2dB | |
| MCS6 | 21dBm | 24dBm | ±2dB | -77dBm | ±2dB | |
| MCS7 | 20dBm | 23dBm | ±2dB | -74dBm | ±2dB | |
| MCS8 | 19dBm | 22dBm | ±2dB | -71dBm | ±2dB | |
| MCS9 | 19dBm | 22dBm | ±2dB | -68dBm | ±2dB | |
| MCS10 | 17dBm | 20dBm | ±2dB | -65dBm | ±2dB | |
| MCS11 | 16dBm | 19dBm | ±2dB | -62dBm | ±2dB | |
| 5.8GHz 802.11ax HE40 | MCS0 | 21dBm | 24dBm | ±2dB | -89dBm | ±2dB |
| MCS1 | 21dBm | 24dBm | ±2dB | -87dBm | ±2dB | |
| MCS2 | 21dBm | 24dBm | ±2dB | -85dBm | ±2dB | |
| MCS3 | 21dBm | 24dBm | ±2dB | -83dBm | ±2dB | |
| MCS4 | 21dBm | 24dBm | ±2dB | -81dBm | ±2dB | |
| MCS5 | 21dBm | 24dBm | ±2dB | -78dBm | ±2dB | |
| MCS6 | 21dBm | 24dBm | ±2dB | -75dBm | ±2dB | |
| MCS7 | 20dBm | 23dBm | ±2dB | -72dBm | ±2dB | |
| MCS8 | 19dBm | 22dBm | ±2dB | -69dBm | ±2dB | |
| MCS9 | 19dBm | 22dBm | ±2dB | -66dBm | ±2dB | |
| MCS10 | 17dBm | 20dBm | ±2dB | -63dBm | ±2dB | |
| MCS11 | 16dBm | 19dBm | ±2dB | -60dBm | ±2dB | |
| 5.8GHz 802.11ax HE80 | MCS0 | 21dBm | 24dBm | ±2dB | -86dBm | ±2dB |
| MCS1 | 21dBm | 24dBm | ±2dB | -84dBm | ±2dB | |
| MCS2 | 21dBm | 24dBm | ±2dB | -81dBm | ±2dB | |
| MCS3 | 21dBm | 24dBm | ±2dB | -79dBm | ±2dB | |
| MCS4 | 21dBm | 24dBm | ±2dB | -76dBm | ±2dB | |
| MCS5 | 21dBm | 24dBm | ±2dB | -74dBm | ±2dB | |
| MCS6 | 21dBm | 24dBm | ±2dB | -71dBm | ±2dB | |
| MCS7 | 20dBm | 23dBm | ±2dB | -68dBm | ±2dB | |
| MCS8 | 19dBm | 22dBm | ±2dB | -65dBm | ±2dB | |
| MCS9 | 19dBm | 22dBm | ±2dB | -62dBm | ±2dB | |
| MCS10 | 17dBm | 20dBm | ±2dB | -59dBm | ±2dB | |
| MCS11 | 16dBm | 19dBm | ±2dB | -56dBm | ±2dB |

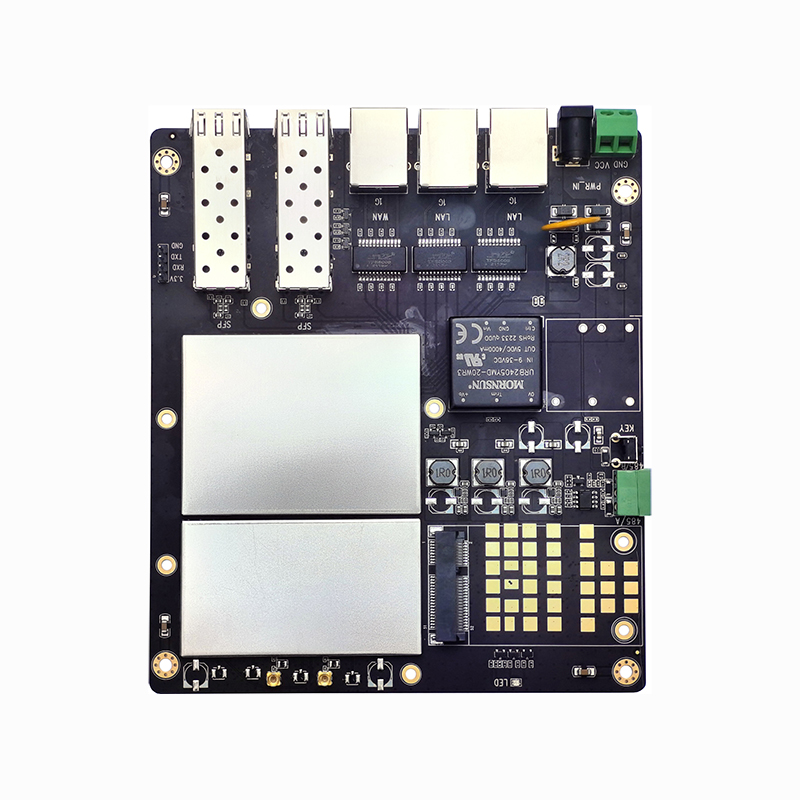

接口展示
